8000W Peak Power OEM ODM 140ah Outdoor Solar Generator Black Emergency Power Station
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | ST-70 | Warranty: | 1year |
|---|---|---|---|
| Material: | ABS+Alloy | Color: | Black |
| Peak Power: | 8000W | Charging Parameter: | 54V/20A |
| AC Output Socket: | Aii | High Temperature Protection: | Shut Down At 80ºC And Recover At < 65ºC |
| Conversion Efficiency: | >=93% | DC Output: | 48V/25A 12V/12A 24V/12A |
| AC Output Waveform: | Sine Wave | Applications: | Indoor, Outdoor Work, Medical Rescue, Emergency Po |
| Solar Input: | 800W Max | Cycle Life: | > 2000 Times |
| Authentication: | CE.Un38.3.MSDS | Operating Ambient Temperature: | -25ºC&+50ºC |
| Built-in Fire Extinguishing Device: | 6s Quick Fire | Transport Package: | Un |
| Specification: | Ternary Lithium Battery | Origin: | Shenzhen |
| Supply Ability: | 1000 | ||
Product Description
1.This product built-in automotive power-grade lithium-ion battery, intelligent conversion of DC and AC, safe lithium battery management system, high-efficiency energy conversion circuit, small size and high power, providing customers with a safe and portable mobile power station.
2.The BMS battery management system gyuarantees the safe u50 of electricity for users.
2.Multiple output ports to meet different electrical equipment , while charging without queuing.
3.Support multiple charging methods,home charging, solar charging,unlimited power usage anytime , anywhere.
4.Support highpower electrical appliances
5.Application Scenes : Family emergency , outdoor travel, outdoor emergency, car emergency car (recharge)medical rescue, field work, etc.
Comfortable pull rod for easy camping
radiator
Anti-skid wheel
This product ST-70 is a pure sine wave, built into a multi-functional mobile energy storage power supply, 6993Wh super capacity, outdoor electricity, never shut down.
7000W power
Meet a variety of equipment requirements
Using automotive grade power cell, the capacity of the cell is more durable
Cycle life up to >2000+
The ability to continuously improve the battery life of various devices,
Meet a variety of equipment requirements
Using automotive grade power cell, the capacity of the cell is more durable
Cycle life up to >2000+
The ability to continuously improve the battery life of various devices,
| Battery type | Ternary lithium battery | Ac output current | 15A MAX | Ac output voltage | 220V±5% |
| Output power | 220V-5000W50hz, 110V-3000W50/60hzadjustable | Peak power | 8000W | Output waveform | Ac pure sine wave |
| Waveform distortion | < 3% linear load ,< 8% non-linear load | Frequency | 50±0.5Hz | Dc output voltage | 12V/24V/48v |
| Dc output current | 10A/12A/50A(MAX) | USB/TYPE-C | 18W(MAX) | Protection function | Short circuit, overload, over temperature, over voltage, over current, under voltage, low temperature, etc |
| Charging parameter | 54V/20A | Battery capacity | 135Ah | Charging time | 6~7H |
| Cycle life | >2500 times, remaining capacity 80%(5%-95%DOD) | Apparent dimension | 610*440*250(mm) | weight | about54.5KG |
Alternating use
Turn on AC switchON/OFF,
The power indicatorlightsup 20%40%60%80%100%,Power will be emitted"drip"sound,
The fan stops for 1 second,
Ac output normal,"AC/OUT"
Can be used with load!
Turn on AC switchON/OFF,
The power indicatorlightsup 20%40%60%80%100%,Power will be emitted"drip"sound,
The fan stops for 1 second,
Ac output normal,"AC/OUT"
Can be used with load!
Direct current service
Turn on the DC switch,DC ON/OFF,
The power indicator lights up
20%40%60%80%100%,
Dc output turned on,
DC48v/25A,DC24V12A,DC12V10A,
Can be used simultaneously.Take care to select the correct output voltage,Avoid damaging electrical appliances,
To use USB / TYPE-C you need to turn it on separately"USB/TYPE-C"Outlet switch.
Turn on the DC switch,DC ON/OFF,
The power indicator lights up
20%40%60%80%100%,
Dc output turned on,
DC48v/25A,DC24V12A,DC12V10A,
Can be used simultaneously.Take care to select the correct output voltage,Avoid damaging electrical appliances,
To use USB / TYPE-C you need to turn it on separately"USB/TYPE-C"Outlet switch.
Welcome to Shenzhen QCEPOWER Technology Co., LTD
Attention:
Our 12V cigarette lighter is designed for powering electronics only. Please do not use it for hot cigarette butts. Ensure that the load does not exceed the rated power to avoid automatic cut-off of the output. When the power supply is as low as 20%, remember to save important data, replace the power supply, and charge it promptly.
Product Description
Product: Power Supply Maintenance Guide
Ensure the longevity and efficiency of your power supply with our maintenance guide:
- Keep the environment clean to prevent dust or chemical pollution from affecting the power supply.
- Check the power supply every 3 months to ensure it is working properly and maintain the power level at 60%.
- Regularly inspect the fan to prevent debris from blocking the air outlet. Replace any damaged fans promptly.
- Charge and discharge the power supply every 3 months, keeping the power level at 60%.
- Regularly check the power supply to ensure optimal performance.
Trust Shenzhen QCEPOWER Technology Co., LTD for reliable power supply maintenance solutions.

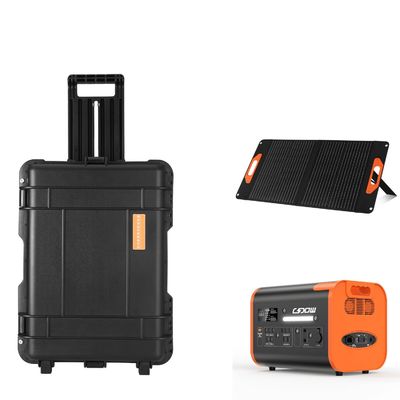

Portable Power Supply
Welcome to Shenzhen QCEPOWER Technology Co., LTD
Product Description:
The portable power supply from Shenzhen QCEPOWER Technology Co., LTD is equipped with Class A ternary lithium batteries, ensuring reliable and efficient power on the go. With a lifespan of over 2000+ cycles, this portable power supply is designed to last.
Key Features:
- Uses Class A ternary lithium batteries
- Long-lasting lifespan of >2000+ cycles
- Supports charging via solar panels
- Compatible with solar panels ranging from 12V to 39V
- Maximum 800W charging capacity
Stay powered up wherever you go with our portable power supply. Charge it with solar energy and enjoy uninterrupted power for your devices.
