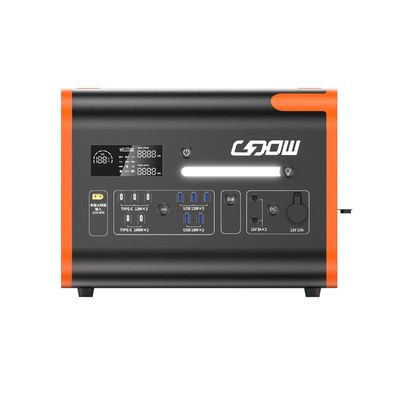

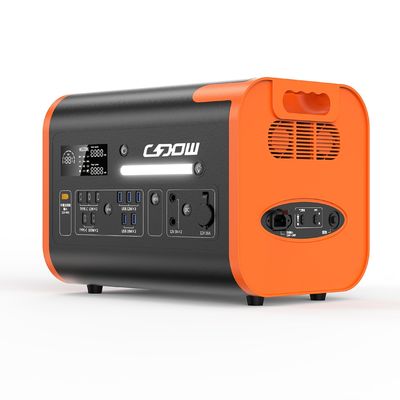

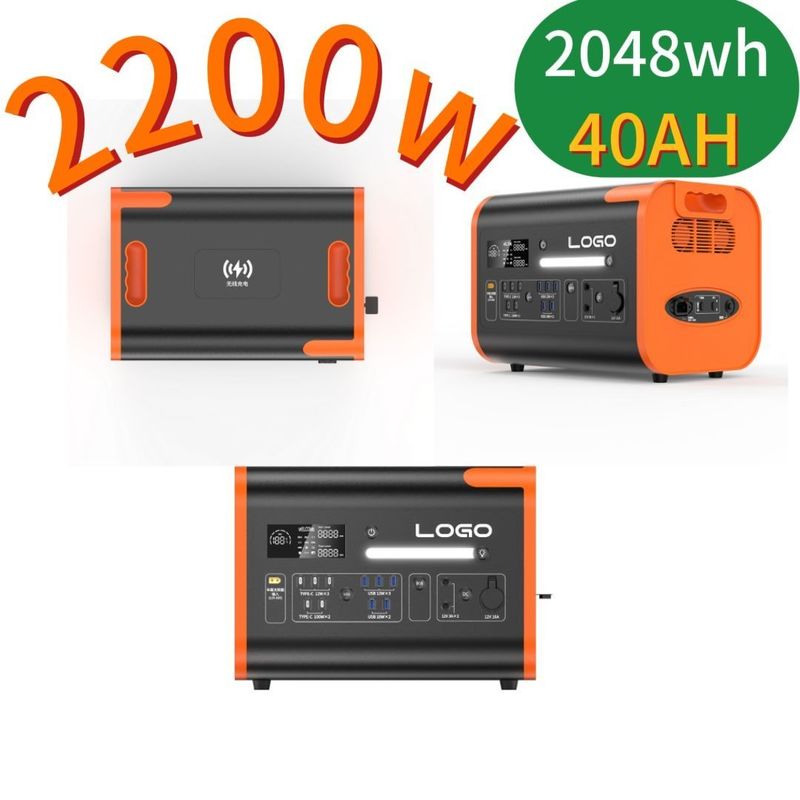

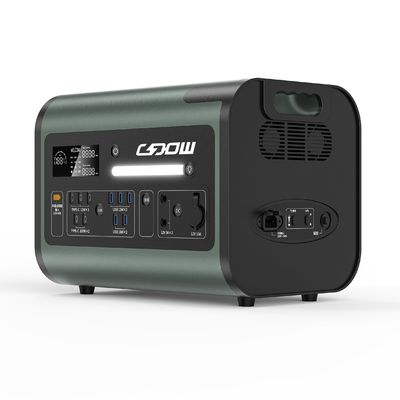

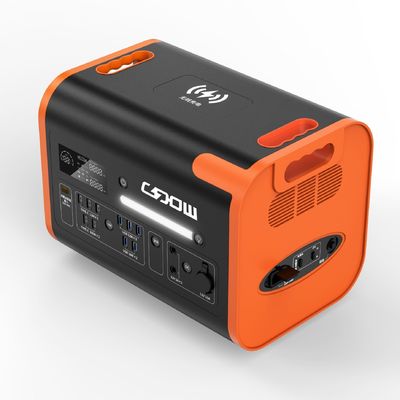

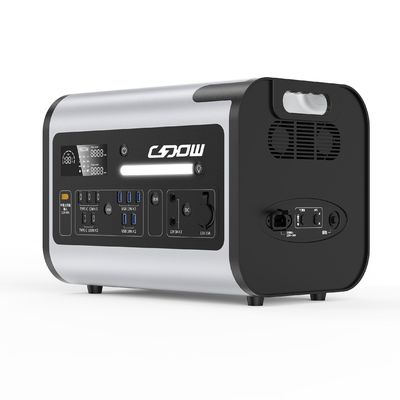

2200W-2400W Camping/Home Solar Generator Your Ultimate Power Solution for Any Adventure
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | AT22 | Warranty: | 1 Year |
|---|---|---|---|
| Wireless Charging: | 15W | Mains: | 1500W |
| USB: | 3*12W/2*18W | Type-C: | 3*18W/2*100W |
| Solar Charging: | 800W | Shell Material: | ABS+PC+Aluminum Alloy, Flame Retardant Grade UL94V |
| AC Output Voltage: | AC:100V-120V/AC:220V-240V | Inverter Waveform: | Pure Sine Wave |
| Battery Capacity: | 51.52V/40ah | Operating Ambient Temperature: | -25ºC +50ºC |
| Output Frequency: | 50/60Hz | Output Voltagefluctuation Range: | -5%~5% |
| Color: | Black | Reveal: | Liquid Crystal Display Screen |
| Life Span: | > 2000 Times | Transport Package: | Un |
| Specification: | LiFePO4 | Origin: | Guangdong |
| Supply Ability: | 1000 | ||
Product Description
ABS+PC+ Aluminum alloy emergency power station AC output socket 220V mobile generator UPS uninterruptible power supply
| Battery Type | LiFePO4 | 2P16S | ||
| AC output voltage | 220V±5% | |||
| Output Power | 2200W constant power can drive 4000W | |||
| Peak power | 4400W | |||
| Output waveform | AC pure sine wave | |||
| Waveform distortion | <3% linear load, <8% nonlinear load | |||
| frequency | 50±0.5Hz | |||
| DC output | 12V | USB | Type-c | Wireless charging |
| DC output power | 120W | 12W*3/18W*2 | 18W*3/100W*2 | 15W |
| Protective function | Short circuit, overload, overtemperature, overvoltage, overcurrent, undervoltage, low temperature, mains overvoltage, mains undervoltage, photovoltaic overvoltage, output undervoltage, etc. | |||
| AC charging | 1500W(Max) | |||
| Vehicle-mounted, solar charging | 800W(Max) | |||
| battery capacity | 51.52V40AH(3.22V*16S) | |||
| cycle life | 2000 times, remaining capacity 80% (5%-95%DOD) | |||
| physical dimension | 405*275*303(mm) height including foot pads | |||
| weight | About 25Kg | |||
| project | parameter | Remark |
| AC charging | 1500W | 220V |
| Solar panels | 800W | 12~75V dc |
| Wind Turbines | 800W | 12~75V dc |
| hand generator | 800W | 12~75V dc |
Up to 100W Type-c port, suitable for most Type-c devices.
12V/3A DC 5521 port for use with certain low power devices.
Individual usage scenarios:
| 1.Outdoor application:Lighting, projectors, drones, laptops, barbecue grills, etc. |
| 2.Home application:TV, rice cooker, washing machine, induction cooker, mobile phone charger, etc. |
| 3.Construction site application:Angle grinder, cutting machine, circular saw, electric hammer, electric drill, etc., |
Q: What products can I buy from you?
A: You can buy here outside: portable power supplies, solar panels, car starter batteries, new energy vehicle charging guns, and low-temperature -40° batteries.
Q: What type of batteries do portable power stations use?
A: The portable charging station uses Class A LiFePO4 battery cells.
Q: Can free samples be provided?
A: Yes, the sample cost will be deducted from the bulk order.
Q: How long can a portable power station charge a device?
A: It depends on what device you are using. For example, if it is a portable rice cooker, 2048Wh*0.9*500W=4.3 hours. By analogy, the power of the device can be used to calculate the usage time.
A: Yes. Any needs of our customers will attract our attention. Customization is our advantage, so please tell me your requirements and we will provide you with the best solution.
