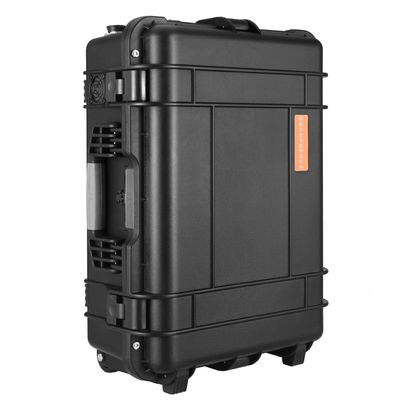

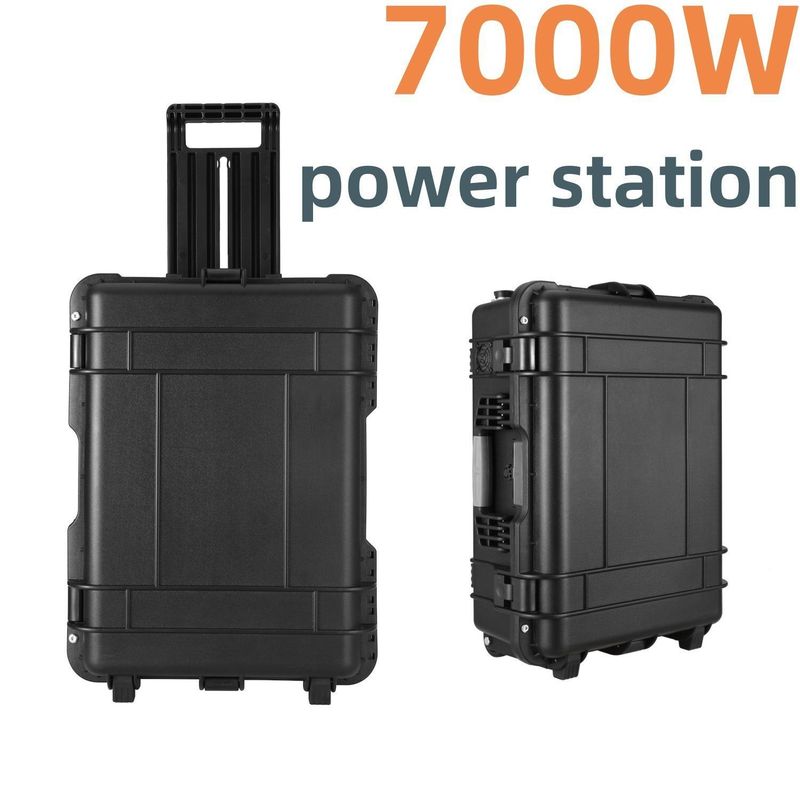

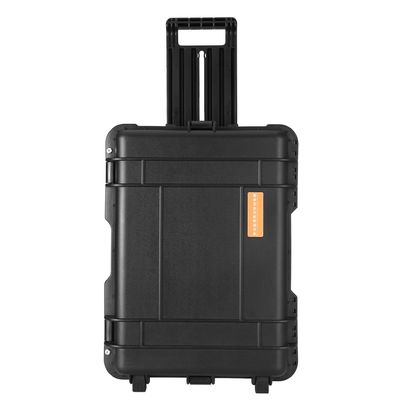

ABS Alloy ST-70 2024 Portable Power Station Solar Generator 3000W 4000W 5000W 6000W 7000W
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | ST-70 | Warranty: | 1year |
|---|---|---|---|
| Material: | ABS+Alloy | Color: | Black |
| Peak Power: | 8000W | Charging Parameter: | 54V/20A |
| AC Output Socket: | Aviation Socket | Shell Material: | ABS+PC+Aluminum Alloy, Flame Retardant Grade UL94V |
| AC Output Voltage: | AC:100V-120V/AC:220V-240V | Charging Mode: | Solar Charging, Car Charging, Mains Charging |
| Export Market: | North America, Europe, East Asia, Japan, Korea | Cell Type: | LiFePO4battery |
| Transport Package: | Un | Specification: | Ternary Lithium Battery |
| Origin: | Shenzhen | Supply Ability: | 1000 |
Product Description
portable power station
Meet a variety of equipment requirements
Using automotive grade power cell, the capacity of the cell is more durable
Cycle life up to >2000+
The ability to continuously improve the battery life of various devices,
| Battery type | Ternary lithium battery | Ac output current | 15A MAX | Ac output voltage | 220V±5% |
| Output power | 220V-5000W50hz, 110V-3000W50/60hzadjustable | Peak power | 8000W | Output waveform | Ac pure sine wave |
| Waveform distortion | < 3% linear load ,< 8% non-linear load | Frequency | 50±0.5Hz | Dc output voltage | 12V/24V/48v |
| Dc output current | 10A/12A/50A(MAX) | USB/TYPE-C | 18W(MAX) | Protection function | Short circuit, overload, over temperature, over voltage, over current, under voltage, low temperature, etc |
| Charging parameter | 54V/20A | Battery capacity | 135Ah | Charging time | 6~7H |
| Cycle life | >2500 times, remaining capacity 80%(5%-95%DOD) | Apparent dimension | 610*440*250(mm) | weight | about54.5KG |

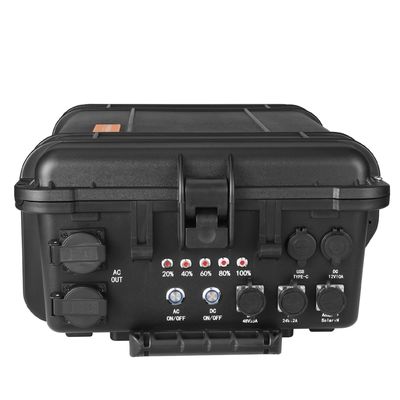

Turn on AC switchON/OFF,
The power indicatorlightsup 20%40%60%80%100%,Power will be emitted"drip"sound,
The fan stops for 1 second,
Ac output normal,"AC/OUT"
Can be used with load!
Turn on the DC switch,DC ON/OFF,
The power indicator lights up
20%40%60%80%100%,
Dc output turned on,
DC48v/25A,DC24V12A,DC12V10A,
Can be used simultaneously.Take care to select the correct output voltage,Avoid damaging electrical appliances,
To use USB / TYPE-C you need to turn it on separately"USB/TYPE-C"Outlet switch.
Attention:12V cigarette lighter cannot use hot cigarette butts!
It can only power electronics.
Do not use a load that exceeds the rated power of the power supply.
The power supply will automatically cut off the output.
When the power supply is as low as 20%, please save important data in advance, be ready to replace the power supply, and charge the power supply in time!
| Care and maintenance: |
1.Keep the environment clean to avoid dust or chemical pollution to the power supply.
2.Check the working condition of the power supply every 3 months, and keep the power level at 60%.
3.Periodically check the working status of the fan to prevent debris from blocking the air outlet. If damaged, should be replaced in time.
4.Charge and discharge the power supply once every 3 months, and keep the power level at 60%.
5.Check the power supply regularly.
Q1: What cell is used for portable power supply?
A1: The portable power supply uses Class A ternary lithium batteries
Q2.How long can portable last?
A2.Portable power supply life up to >2000+ cycle use

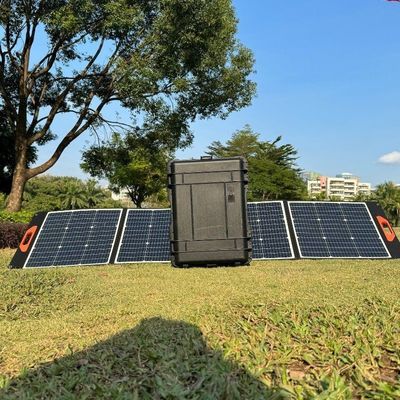

Q3.Can the portable power supply be charged by solar panels?
A.3Yes, the solar cell can charge the portable power supply, supporting the solar panel 12V~39V, the maximum 800W charging
