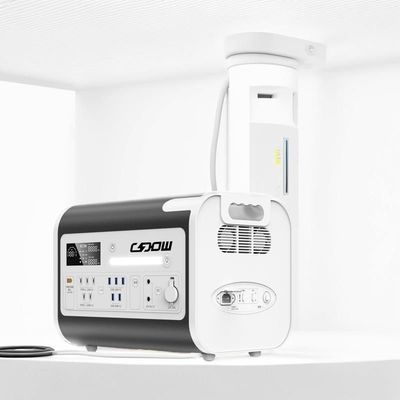

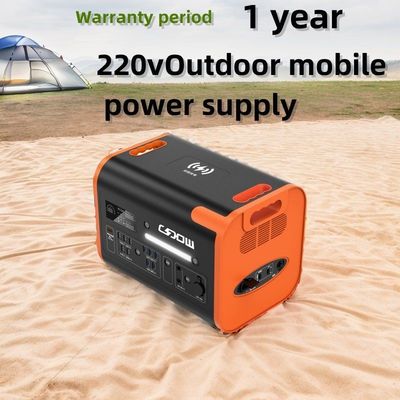

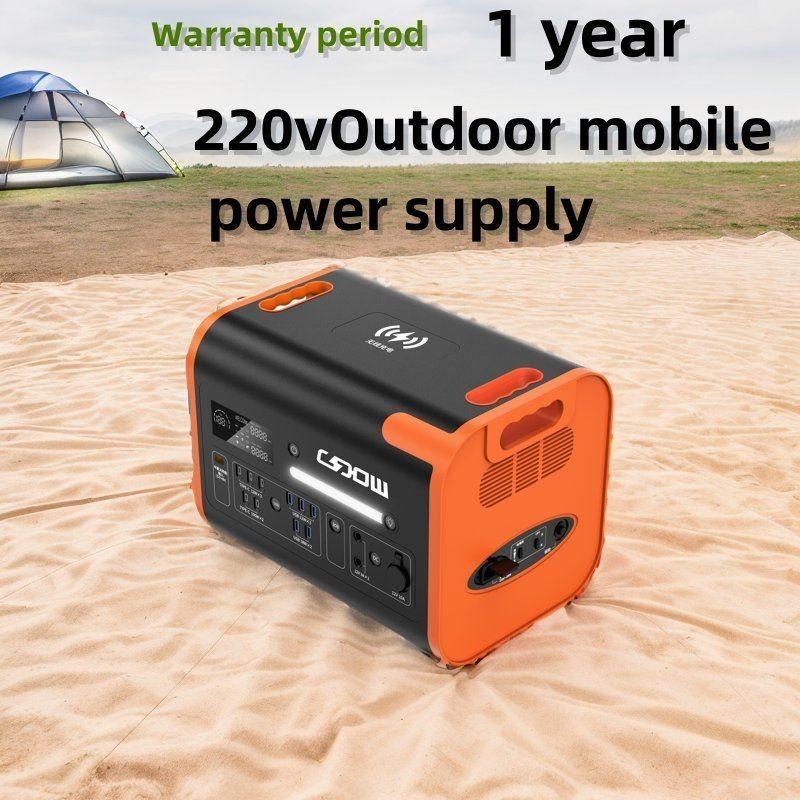

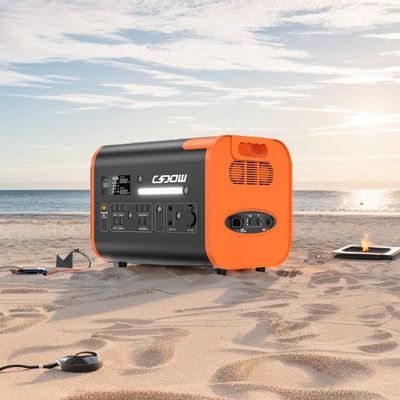

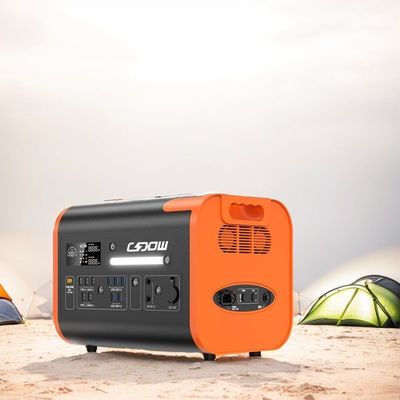

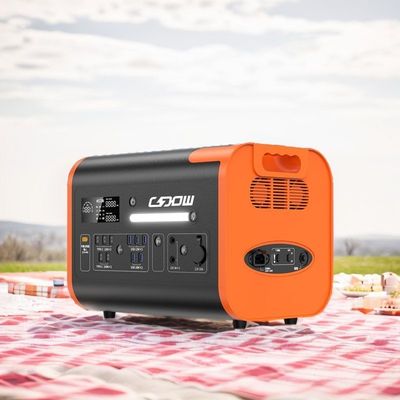

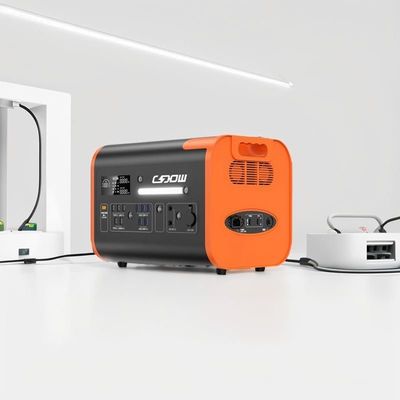

Emergency/Travel Lithium Battery Inverter Set with USB Charging and Automatic Switching
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | AT22 | Warranty: | 1 Year |
|---|---|---|---|
| Wireless Charging: | 15W | Mains: | 1500W |
| USB: | 3*12W/2*18W | Type-C: | 3*18W/2*100W |
| Solar Charging: | 800W | Shell Material: | ABS+PC+Aluminum Alloy, Flame Retardant Grade UL94V |
| AC Output Voltage: | AC:100V-120V/AC:220V-240V | Charging Mode: | Solar Charging, Car Charging, Mains Charging |
| Export Market: | North America, Europe, East Asia, Japan, Korea | Cell Type: | LiFePO4battery |
| LED Lighting: | Tape Display | Battery Removable: | May Not |
| UPS: | 10 Milliseconds Automatic Switching | Security Protection: | BMS Protection |
| Colour: | Black With Orange (Color Can Be Customized) | Transport Package: | Un |
| Specification: | LiFePO4 | Origin: | Guangdong |
| Supply Ability: | 1000 | ||
Product Description
Portable power stations are highly efficient and reliable, providing reliable, high-quality power for your equipment
The design uses lithium iron phosphate battery as the main body of energy storage, with high safety, small size, large capacity, light weight, large power, easy to carry and other characteristics, to provide you with a more convenient mobile power solution.
Widely used in: outdoor office, medical rescue, fire rescue, outdoor recreation, emergency communication, environmental monitoring and other fields
| Battery type | LiFePO4 battery | 2P16S | ||
| Ac output voltage | 220V±5% | |||
| Output power | 2200W constant power can drive 4000W | |||
| Peak power | 4400W | |||
| Output waveform | Ac pure sine wave | |||
| Waveform distortion | < 3% linear load, < 8% non-linear load | |||
| frequency | 50±0.5Hz | |||
| Dc output | 12V | USB | Type-c | Wireless charging |
| Dc output power | 120W | 12W*3/18W*2 | 18W*3/100W*2 | 15W |
| Protection function | Short circuit, overload, overtemperature, overvoltage, overcurrent, undervoltage, low temperature, mains overvoltage, mains undervoltage, photovoltaic overvoltage, output undervoltage, etc | |||
| Ac charging | 1500W(Max) | |||
| Car, solar charging | 800W(Max) | |||
| Battery capacity | 51.52V40AH(3.22V*16S) | |||
| Cycle life | >2000 times, remaining capacity 80% (5%-95%DOD) | |||
| Apparent dimension | 405*275*303(mm) including foot pad height | |||
| weight | About 25Kg | |||
Multi-function charging
| item | argument | remark |
| Ac charging | 1300W | 220V |
| Solar panel | 800W | 12~75V dc |
| Wind turbine | 800W | 12~75V dc |
| Hand generator | 800W | 12~75V dc |
Accurate capacity display: SOC remaining capacity display
Super fast charge: Mains super fast charge 1500W
Smart display: LED power display indicator
Power grid frequency adaptive: The inverter output voltage can adapt to the power grid 50Hz or 60Hz, the intelligent output 50/60Hz, and the output frequency can also be set through panel operation
Super fast charge: Mains super fast charge 1500W
Smart display: LED power display indicator
Power grid frequency adaptive: The inverter output voltage can adapt to the power grid 50Hz or 60Hz, the intelligent output 50/60Hz, and the output frequency can also be set through panel operation
Load adaptive: It can intelligently identify large impact loads and large resistance loads of excess fixed power and convert them to constant power output
intelligent charging: DC charging port can be adaptive car charging and photovoltaic charging, can be combined with the municipal power fast charging reasonable output charging power
intelligent charging: DC charging port can be adaptive car charging and photovoltaic charging, can be combined with the municipal power fast charging reasonable output charging power
High-speed switching: The switching time between mains and battery is less than 10ms
multi-functional DC output: 12V/USB/TYPE-C/ wireless charging
multiple battery protection: undervoltage (overdischarge), overvoltage (overcharge), short circuit, high temperature, low temperature
AC multiple protection: mains overvoltage, mains undervoltage, photovoltaic overvoltage, output undervoltage, overload, short circuit, overtemperature
multi-functional DC output: 12V/USB/TYPE-C/ wireless charging
multiple battery protection: undervoltage (overdischarge), overvoltage (overcharge), short circuit, high temperature, low temperature
AC multiple protection: mains overvoltage, mains undervoltage, photovoltaic overvoltage, output undervoltage, overload, short circuit, overtemperature
| Machine type | Attachment name | quantity | unit | remark |
| AT22 | User manual | 1 | this | Standard configuration |
| Warranty card | 1 | this | Standard configuration | |
| Power cord | 1 | article | Standard configuration | |
| Cigarette lighter to XT60 line car charging line | 1 | article | Standard configuration | |
| MC4-XT60 solar charging cable | 1 | article | assorting |
Q: How many kilowatt-hours does a portable power station have?
A: The portable power station capacity is: 2048Wh, equal to 2 KWH of electricity.
Q: How much equipment can a portable power station use at camp, and for how long?
A: The portable power station has 18 output outlets that can use 18 kinds of equipment, for example: your equipment is (50W), then the use time can be calculated: 2048Wh*0.9*50= about 36 hours
Q: Can portable power stations be customized in color?
A: You can customize the color, depending on how many you need,
Q: What kind of cell does a portable power station use?
A: Portable power station uses A class lithium iron phosphate cell, long service life, high safety performance,
