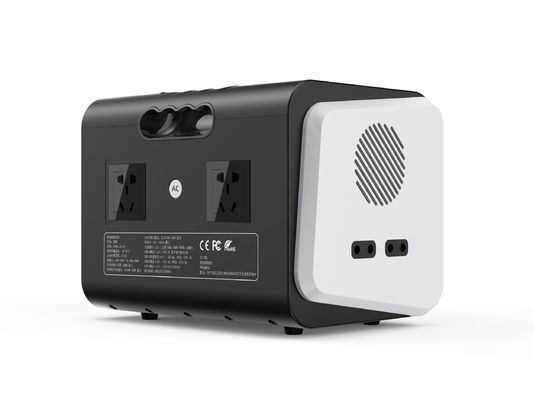

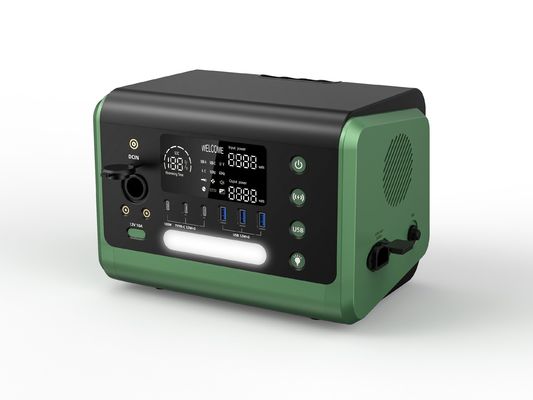

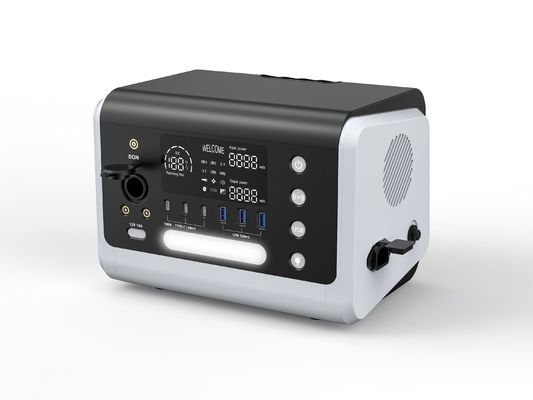

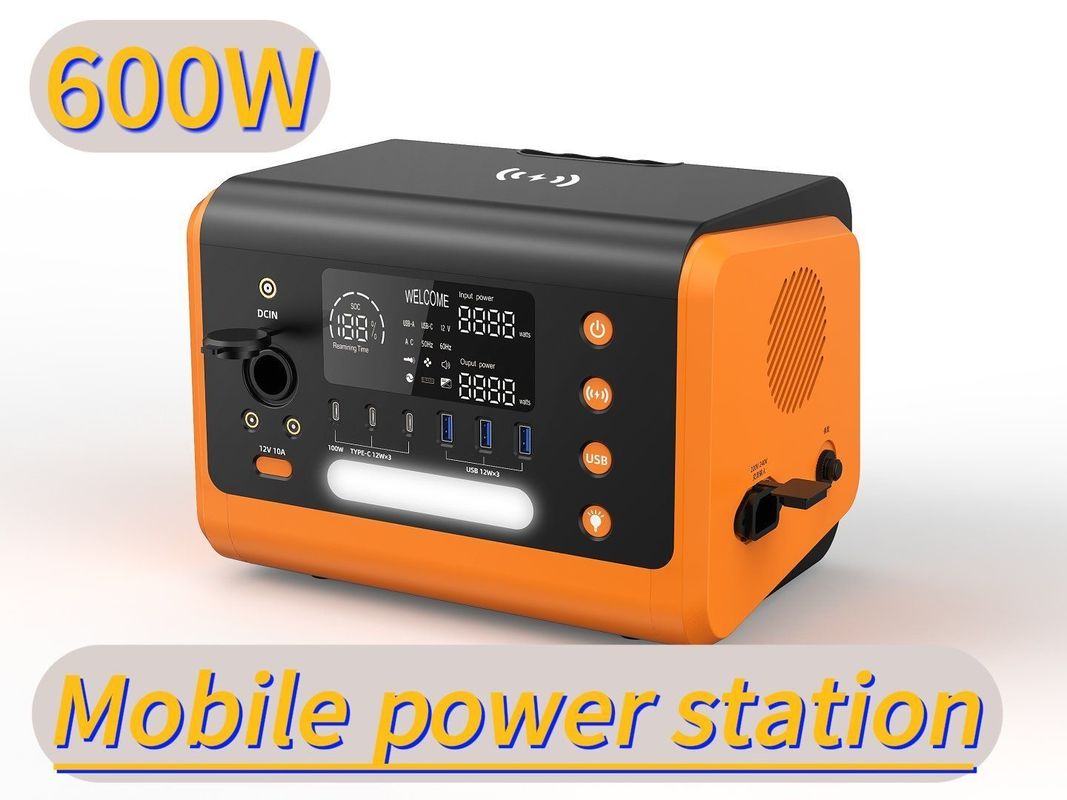

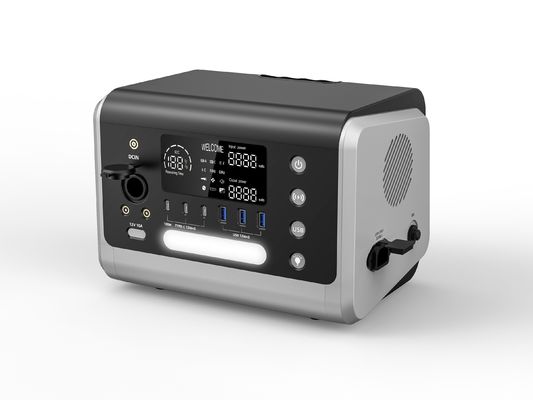

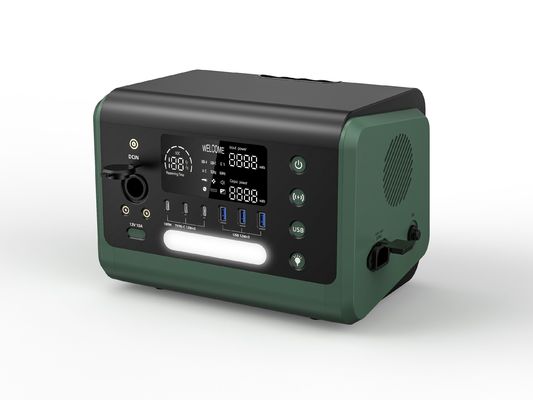

600W Solar Generator Portable Power Station HT06 600Wh with AC Output 110V/230V
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | HT06 | Warranty: | 1year |
|---|---|---|---|
| Wireless Charging: | 15W | DC Output: | 12V/10A |
| USB: | 12W*3 | AC Output: | 110V/230V |
| Fast Charge: | 1 Hour | Transport Package: | Un |
| Specification: | LiFePO4 | Origin: | Shenzhen |
| Supply Ability: | 1000 | ||
Product Description
600W mini portable power station multi-scene solar energy storage battery station outdoor power supply
HT06 power supply has the function of bidirectional charge and discharge in one
High-end portable mobile power or home energy storage
System
High-end portable mobile power or home energy storage
System
Inverter mode:
When there is no mains supply, the inverter converts AC power to supply power to the load
When there is no mains supply, the inverter converts AC power to supply power to the load
| Charging mode:Charging mode: When there is mains power, the battery is charged through the full-bridge inverter unit at the same time; |
| Dc input charging mode:When the DC input port is inserted into the photovoltaic plate, the system starts the MPPT charging mode. This interface is also used as an adapter input interface. |
| Inverter output | Rated output voltage | Rated output power | Rated output frequency | Output voltage fluctuation range |
| 120Vac | 600W | 50/60Hz | ±5% | |
| Mains input | Input voltage range | Rated input power | Rated output frequency | Mains charging power |
| 120Vac | 600W | 50/60Hz | 500W | |
| Photovoltaic input | Operating voltage range | Maximum input current | Maximum output power | |
| 12V~60V | 12A | 240W | ||
| Battery input | Rated input voltage | |||
| 22V |
| item | Minimum value | Typical value | Maximum value | remark |
| Rated input voltage | 17.5VDC | 22.0VDC | 26.0VDC | Suitable for 7 string lithium iron batteries |
| Undervoltage protection | 17.0VDC | 17.5 VDC | 18.0 VDC | Default: 17.5± 0.5V (configurable, minimum 19.5Vdc) |
| Overvoltage protection | 25.0VDC | 25.5VDC | 26.0VDC | Default: 30.0± 0.5V (configurable, maximum 30.0VDC) |
| Rated input current | -- | 30.3A | -- | Vin=22Vdc, Rated load |
| Floating charge voltage | 24.8VDC | 25VDC | 25.2VDC | Default: 25±0.2V (configurable) |
A variety of output ports make you compatible with more devices for outdoor use at home
11 output ports:
| Wireless charging | 1*15W |
| AC Output: | 2*230W |
| DC Output: | 1 |
| USB: | 3*12W |
| TYPE-C: | 1*100W/2*18W |
| 12V/10A: | 2 |
Q: How to ensure quality?
A: Always carry out pre-production samples before mass production; Always carry out final inspection before shipment;
Q: What can you buy from us?
A: You can buy here outside: portable power station, solar panel, car starting battery, new energy car charging gun, low temperature battery,
Q: Can I buy a sample for testing?
A: Yes, we support testing
Q: How about after-sales service?
A:We offer a 1 year warranty, if any problems arise, we will provide a positive solution, please feel free to contact us.
