2048wh Capacity Energy Storage Camping Solar Power Station AC Charging Time 90 Minutes
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | AT22 | Warranty: | 1 Year |
|---|---|---|---|
| Shell Material: | ABS+PC+ Aluminum Alloy, Flame Retardant Grade UL94 | Inverter: | Bidirectional Inverter |
| Charging Parameter: | Constant Power 1500W | Multifunctional DC Output: | 12V/USB/Type-C/ Wireless Charging |
| Precision Capacity Display: | The Remaining Soc Capacity Is Displayed | UPS: | 0.01seconds |
| AC Output Socket: | All | Solar Panel Charging: | 800W 12~75V |
| Authentication: | CE, MSDS, Un38.3 | AC Charging Time: | 90 Minutes |
| Attachment: | AC Charging Cable, Car Charging Cable, Manual, PAC | USB Output: | 3*12W/2*18W |
| Type-C Output: | 3*18W/2*100W | Carrying Mode: | Easy To Carry |
| Colour: | Orange Black (Customizable) | Transport Package: | Un |
| Specification: | LiFePO4 | Origin: | Guangdong |
| Supply Ability: | 1000 | ||
Product Description
| This product is a portable energy storage power supply, suitable for home emergency power supply, outdoor travel, emergency disaster relief, field work and other applications. |
Output 220V(50/60Hz) pure sine wave
MPPT solar energy,
car charger input.

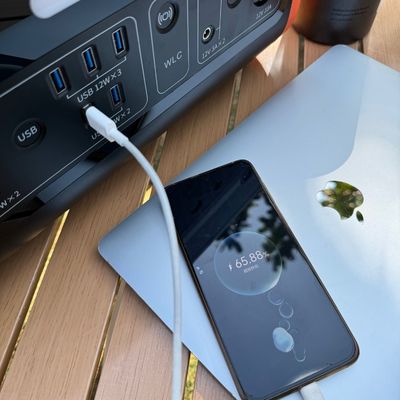

With multiple DC output ports USB QC3.0 and TYPE-C, wireless charging, car cigarette lighter and other interfaces.
| AT22 | |||
| Model: | AT22 | Battery Capacity | 51.52V 40AH(3.22V*16S) |
| Battery Cell | LiFePo4 | AC output waveform | Pure Sine Wave |
| Appearance size | 405*275*303(mm) height including foot pods | Weight | ~25Kg |
| Inverter output | |||
| output voltage | 110Vac | Rated output power | 2200W |
| Output frequency | 50/60Hz | Output voltagefluctuation range | -5%~5% |
| Mains output | |||
| Rated input voltage | 110Vac | Rated input power | 2200W |
| Rated output frequency | 50/60Hz | Mains charging power | 1800W |
| Photovoltaic output | |||
| Working voltage range | 12V~75V | maximum input current | 25A |
| maximum input power | 800W | ||
When there is no mains supply, the battery uses the booster unit to boost the low-voltage DC to the high-voltage DC bus, and the DC bus uses the DC/AC full-bridge inverter unit to convert the AC power to supply power to the load
When there is mains power, the mains power supplies the load through the switching unit, and charges the battery through the full-bridge inverter unit/booster unit

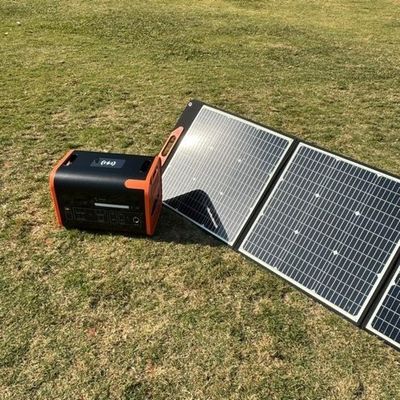

When the DC input port is inserted into the photovoltaic plate, the system starts the MPPT charging mode, and the software will determine whether the photovoltaic plate or the adapter is inserted, and automatically adjust the charging power.
Product application scenarios:

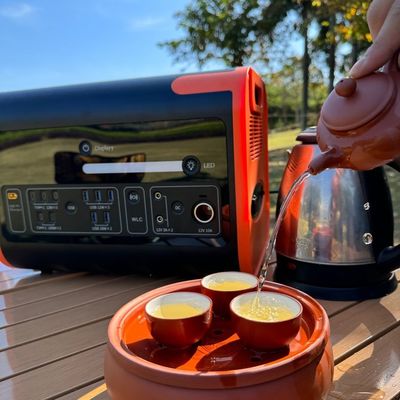

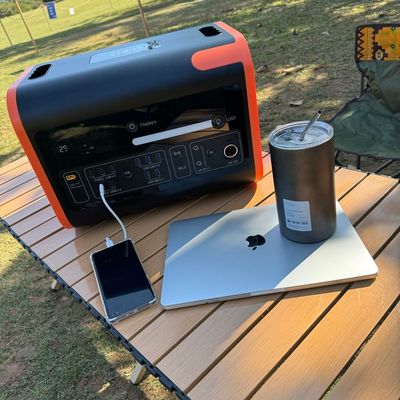

| Outdoor applications | Lighting, fans, projectors, speakers, inflatables, charging, cooking, etc. |
| home application | TVs, computers, rice cookers, electric blankets, washing machines, etc. |
| manual application | Electric drills, cutting machines, circular saws, chainsaws, lawn mowers, electric hammers, etc |
| Common electronic application | Smart watches, tablets, drones, digital cameras, etc. |
Product design must meet the safety certification requirements of different countries. The company can provide product certification as follows: FCC, UN38.3, PSE, MSDS, ETL;
Q1. How much electricity can portable power stations store?
A: This product can store 2048wh. It's about 2 KWH of electricity.
Q2. Does the portable power station support fast charging?
A: This model AT22 supports fast charging. For axample , it can support 1300W charging and the charging time is about 90 minutes.
Q3. Does the portable power station support solar energy or on-board charging?
A: This model AT22 supports solar and on-board charging, as well as wide voltage DC charging. Supports 12 to 75V DC input, with a maximum of 800W.
Q4: Can the portable power station be customized in other colors?
A: Portable power stations can be customized in color.
