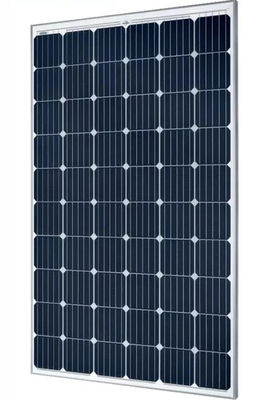

IP68 Protection Level Solar Panel with 36 Cells and Anodized Aluminum Alloy Frame
Product Details:
| Place of Origin: | Shenzhen |
| Certification: | CE/FCC/ROHS/UN38.3 |
| Model Number: | SP-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30 |
|---|---|
| Price: | 41.72 |
| Packaging Details: | Routine/negotiation |
| Delivery Time: | Small batch 5 ~ 8 days, large batch negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 units/month |
|
Detail Information |
|||
| After-sales Service: | Yes | Warranty Period: | 25 Years |
|---|---|---|---|
| Material: | Single Crystal Silicon | Specification: | 1190× 540× 18mm |
| Weight: | 4.5 Kg | Junction Box: | Protection Degree IP68 |
| Coupler: | Compatible Mc4 Connector | Open-Circuit Voltage: | 18V |
| Short Circuit Current: | 5.56A | Module Efficiency: | 20% |
| Highlight: | Aluminum Alloy Frame Solar Panel,IP68 Protection Level Solar Panel,36 Cells Solar Panel |
||
Product Description
Glass
> Antireflective glass> Translucency of normal luminance is increased 2%
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
Humanized design
> More protection with practical and effective design
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module

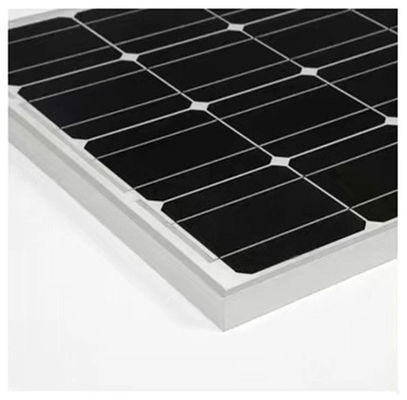

frame
> Standard size
> Silver and black
> Specification: 1190× 540× 18mm
A stress test.
Junction box
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Product parameter :
| Cell Type | Mono 125mm |
| Number of Cells | 36 pcs( 4 x 9 ) |
| Module Dimension | 1190×540×18mm |
| Weight | 4.5 kg |
| Glass | 3.2mm high transmittance, anti-reflection coated tempered glass |
| Back Sheet | White |
| Frame | Anodized aluminum alloy |
| Junction Box | Protection degree IP68 |
| Cable | 4mm , 240mm long PVcable |
| Quantity of diodes | 3 |
| Wind Load/Snow Load | 2400pa / 5400pa |
| Connector | Compatible MC4 connector |

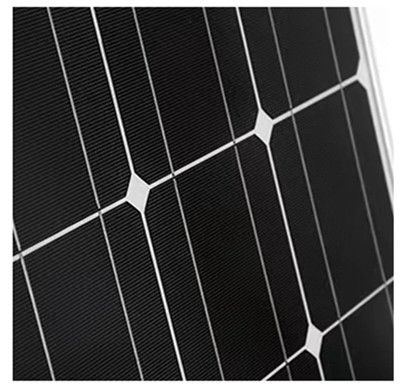

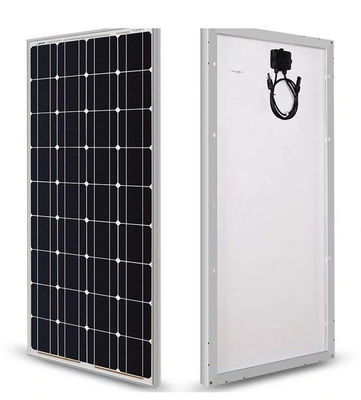

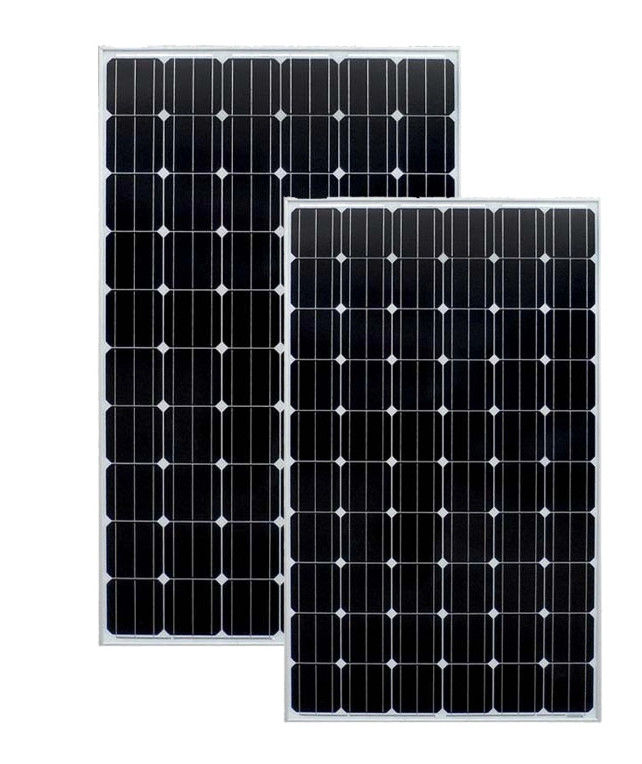

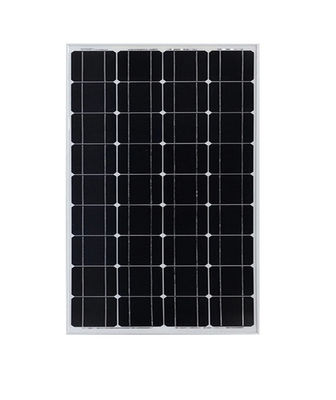

Detailed picture:
Product characteristics:
| 1. High conversion efficiency of leading innovative photovoltaic technology; |
| 2. High stability, ensure +/-3% power output tolerance, to ensure return on investment |
| 3.using high transparent and low iron tempered glass, anti-aging EVA, high insulation TPT seal, and through anodic oxidation (or electroplating) treatment; |
| 4.25 years /84% power output guarantee, 10 years /90% power output guarantee and 10 years material and process guarantee |
| 5.can withstand high wind pressure, snow load; |
25-year linear warranty
0.55% linear power attenuation
PS:Exceptional warranty commitment 25 years power warranty
Q1: Can you give me a sample order for a portable power station?
A: Yes, we welcome samples to test and check the quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3: Do you have a minimum order quantity for portable power stations?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to process an order for a portable power station?
A: First let us know your request or application.
Secondly, we offer according to your requirements or our suggestions.
Third: the customer confirms the sample and pays the deposit to formally order
Q6. Can my logo be printed on a portable power station?
A: Yes. Please inform us formally before our production.
Q7: Do you offer a warranty on portable power stations?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new products with new order for small quantity. For defective batch products, we will repair them and
