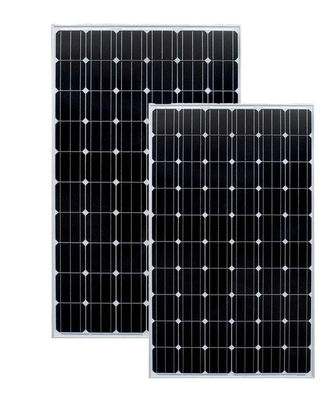

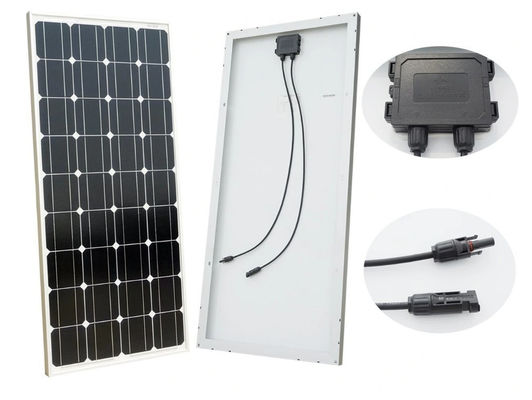

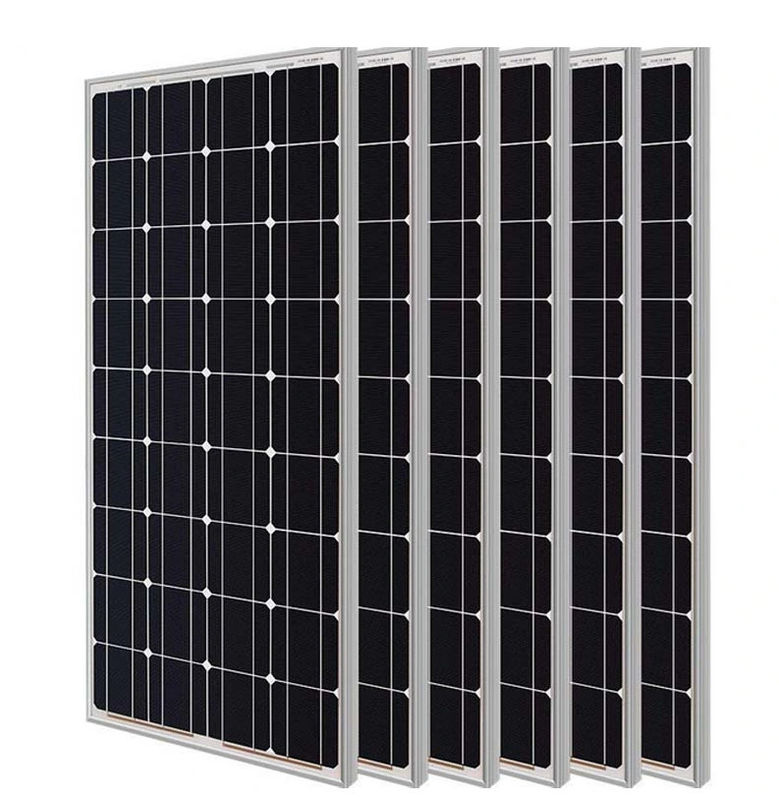

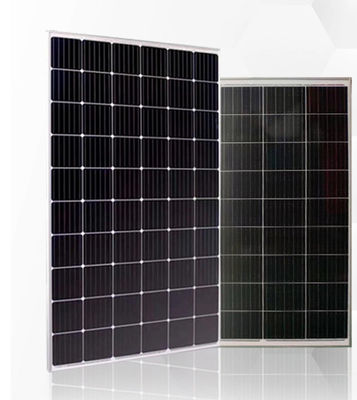

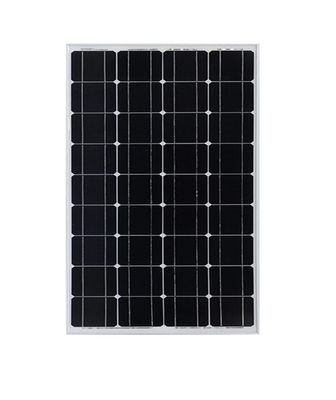

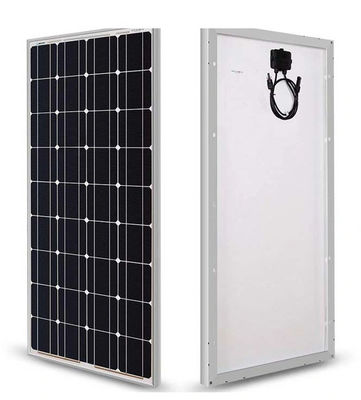

Maintenance-free 25-year Solar Roof Panel 100W 280W Monocrystalline Silicon Photovoltaic Module With Aluminum Frame
Product Details:
| Place of Origin: | shen zhen |
| Certification: | UN38.3 CE |
| Model Number: | SP-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30 |
|---|---|
| Price: | 41.72 |
| Packaging Details: | Routine/negotiation |
| Delivery Time: | Small batch 5-8 days. Bulk negotiation |
| Payment Terms: | T/T, L/C, D/P, Western Union, MoneyGram |
| Supply Ability: | 10000 units/month |
|
Detail Information |
|||
| Open-Circuit Voltage: | 18V | Short Circuit Current: | 5.56A |
|---|---|---|---|
| Module Efficiency: | 20% | Coupler: | Compatible Mc4 Connector |
| Wind Load/Snow Load: | 2400PA / 5400PA | Quantity Of Diodes: | 3 |
| Cable: | 4mm , 240mm Long Pvcable | Junction Box: | Protection Degree IP68 |
| Frame: | Anodized Aluminum Alloy | Back Sheet: | White |
| Glass: | 3.2mm High Transmittance, Anti-Reflection Coated T | Weight: | 4.5 Kg |
| Cell Type: | Mono 125mm | Nominal Operatingtemperature Ofcell: | 44±2ºC |
| Maximum System Voltage: | 1500V DC | ||
| Highlight: | 280W solar roof panel,monocrystalline silicon solar roof panel,aluminum frame solar roof panel |
||
Product Description
Product description:
| Solar panels are usually composed of photovoltaic arrays that directly use solar energy from the sun to generate electricity for our daily use. |
| Solar panels are environmentally friendly in nature, collecting the abundant solar energy on Earth and converting it using advanced technologies developed by humans. |
Detail chart:
| > Antireflective glass> Translucency of normal luminance is increased 2% |
| > Module efficiency is increased 2% |
| > Self-clean function |
| > Service life 25 years |
design:
| > Practical and effective design, more protection |
| > Prevent aluminum frame from scratching hands |
| > Use rainwater to clean the dirt remaining on the solar module |
frame:
| > Standard size |
| > Silver and black |
| > Specification: 1190× 540× 18mm A stress test. |
Product parameter:
| Cell Type | Mono 125mm |
| Number of Cells | 36 pcs( 4 x 9 ) |
| Module Dimension | 1190×540×18mm |
| Weight | 4.5 kg |
| Glass | 3.2mm high transmittance, anti-reflection coated tempered glass |
| Back Sheet | White |
| Frame | Anodized aluminum alloy |
| Junction Box | Protection degree IP68 |
| Cable | 4mm , 240mm long PVcable |
| Quantity of diodes | 3 |
| Wind Load/Snow Load | 2400pa / 5400pa |
| Connector | Compatible MC4 connector |
Industry leading linear warranty:
| 10 -year warranty for material |
| 25-year linear warranty |
| 0.55% linear power attenuation |
| PS:Exceptional warranty commitment 25 years power warranty |
FAQ:
Q1: Can you give me a sample order for a portable power station?
A: Yes, we welcome samples to test and check the quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3: Do you have a minimum order quantity for portable power stations?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to process an order for a portable power station?
A: First let us know your request or application.
Secondly, we offer according to your requirements or our suggestions.
Third: the customer confirms the sample and pays the deposit to formally order
Q6. Can my logo be printed on a portable power station?
A: Yes. Please inform us formally before our production.
Q7: Do you offer a warranty on portable power stations?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new products with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
