220V±5% AC Output Voltage 15W Wireless Charging Long-Life LiFePO4 Cells Fast Charging
Product Details:
| Place of Origin: | Shenzhen |
| Certification: | CE/FCC/ROHS/UN38.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Routine/negotiation |
| Delivery Time: | Small batch 5 ~ 8 days, large batch negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 3000 units/month |
|
Detail Information |
|||
| Model NO.: | AT22 | Output Power: | 2200W Constant Power Can Drive 4000W |
|---|---|---|---|
| Output Waveform: | AC Pure Sine Wave | Protection Function: | Short Circuit, Overload, Overtemperature, Overvolt |
| AC Charging: | 1500W | Car, Solar Charging: | 800W Max |
| Battery Capacity: | 51.52V40ah(3.22V*16s) | Cycle Life: | >2000 Times, Remaining Capacity 80% (5%-95%Dod) |
| Colour: | Orange Black: Customizable | Charging Time: | 90 Minutes |
| Authentication: | Un38.3/Msos | Uninterrupted Power Supply: | 0.01seconds |
| Wireless Charging: | 15W | Type-C: | 3*18W/2*100W |
| Transport Package: | Un | Specification: | LiFePO4 |
| Origin: | Guangdong | Supply Ability: | 1000 |
| Nominal Capacity: | 2048wh | Size: | 405*275*303(mm) |
| Weight: | About 25kg | Warranty: | 1 Year |
| AC Socket: | United Nations, United States, European Union, Jap | AC Output Voltage: | 220V±5% |
| Samples: | US$ 965/Piece 1 Piece(Min.Order) | Request Sample | Customization: | Available | Customized Request |
Product Description

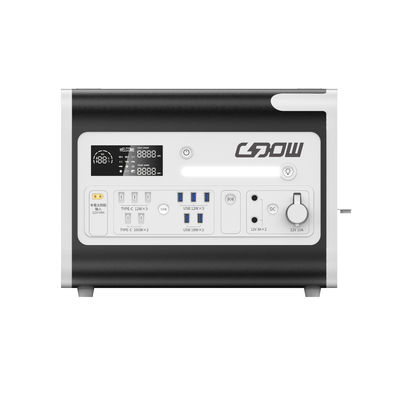

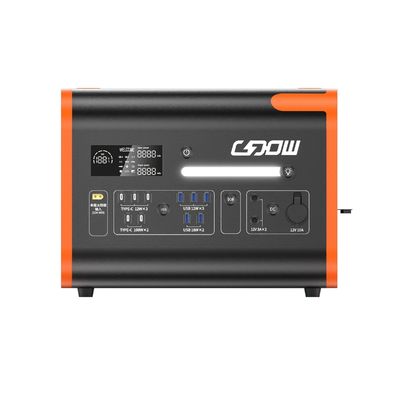

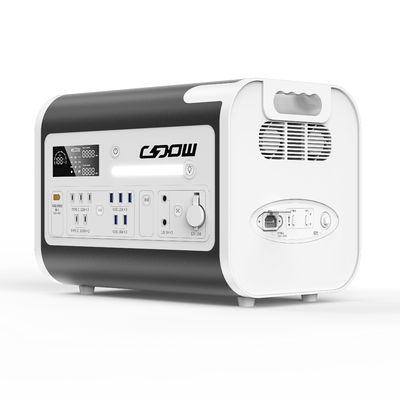

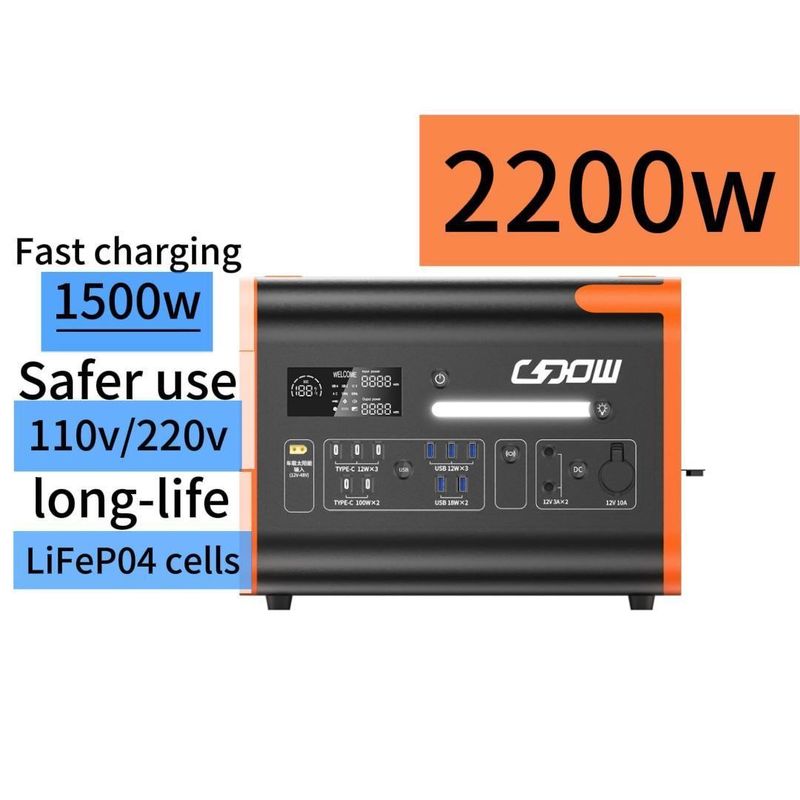

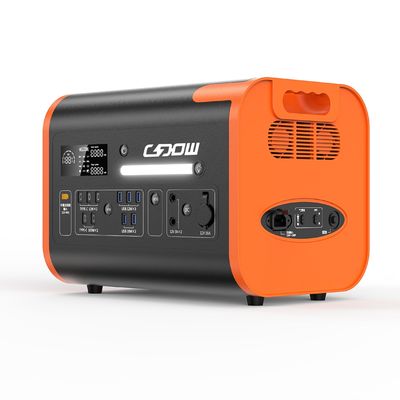

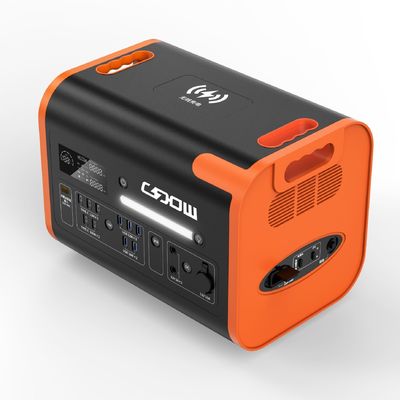

AT22 is A high-end portable energy storage power supply, built-in A-class LiFePO4 lithium battery, compatible with a variety of charging methods such as mains power, solar energy, vehicle, etc.
Support AC output, DC, TYPE-C, USB, LED and other functions, very suitable for outdoor camping, emergency, backup power, RV, ship and other scenarios.
1)Lithium iron phosphate battery, high safety level, long life.
2)Unprecedented portability
3)Mains super fast charge 1500W
4)Reliable power control system
5)Multiple protection system
6)Multiple charging methods
7)Excellent output capability
8)Excellent environmental adaptability
9)Meets multiple national security certifications
10)1 year warranty.
| AT22 portable power station | ||||
| Battery type | LiFePO4 | 2P16S | ||
| Ac output voltage | 220V±5% | |||
| Output power | 2200W constant power can drive 4000W | |||
| Peak power | 4400W | |||
| Output waveform | Ac pure sine wave | |||
| Waveform distortion | < 3% linear load, < 8% non-linear load | |||
| frequency | 50±0.5Hz | |||
| Dc output | 12V | USB | Type-c | Wireless charging |
| Dc output power | 120W | 2W*3/18W*2 | 18W*3/100W*2 | 15W |
| Protection function | Short circuit, overload, overtemperature, overvoltage, overcurrent, undervoltage, low temperature, mains overvoltage, mains undervoltage, photovoltaic overvoltage, output undervoltage, etc | |||
| Ac charging | 1500W(Max) | |||
| Car, solar charging | 800W(Max) | |||
| Battery capacity | 51.52V40AH(3.22V*16S) | |||
| Cycle life | >2000 times, remaining capacity 80% (5%-95%DOD) | |||
| Apparent dimension | 405*275*303(mm) including foot pad height | |||
| weight | About 25Kg | |||
| item | argument | remark |
| Ac charging | 1500W | 220V |
| Solar panel | 800W | 12~75V dc |
| Wind turbine | 800W | 12~75V dc |
| Hand generator | 800W | 12~75V dc |
| Outdoor use equipment: drones. Cell phone. Laptop. Bluetooth speaker. Grill and other equipment power supply |
| Home emergency charging: refrigerator. TV. Oxygen generator. Coffee maker. Hot water kettle. Fan and other equipment power supply. |
Our power supply has 18 ports to meet your different needs
Up to 100W Type-C ports for most Type-C devices.
18W USB port for fast charging of your devices.
QC3.0 USB-A port for fast charging of compatible devices.
12V DC 5521 port for some low-power devices.
Four 110V (230V optional) AC ports for a variety of household appliances and tools.
Q1: Can you give me a sample order for a portable power station?
A: Yes, we welcome samples to test and check the quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3: Do you have a minimum order quantity for portable power stations?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to process an order for a portable power station?
A: First let us know your request or application.
Secondly, we offer according to your requirements or our suggestions.
Third: the customer confirms the sample and pays the deposit to formally order
Q6. Can my logo be printed on a portable power station?
A: Yes. Please inform us formally before our production.
Q7: Do you offer a warranty on portable power stations?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new products with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
