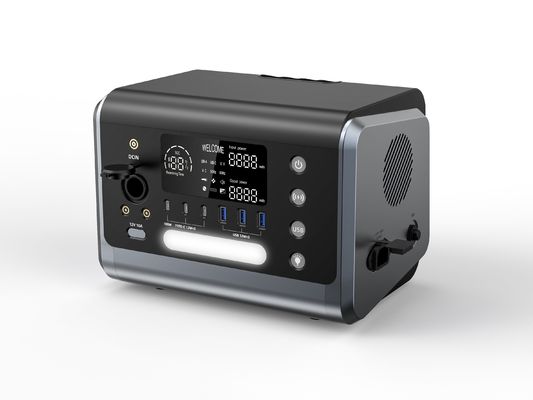

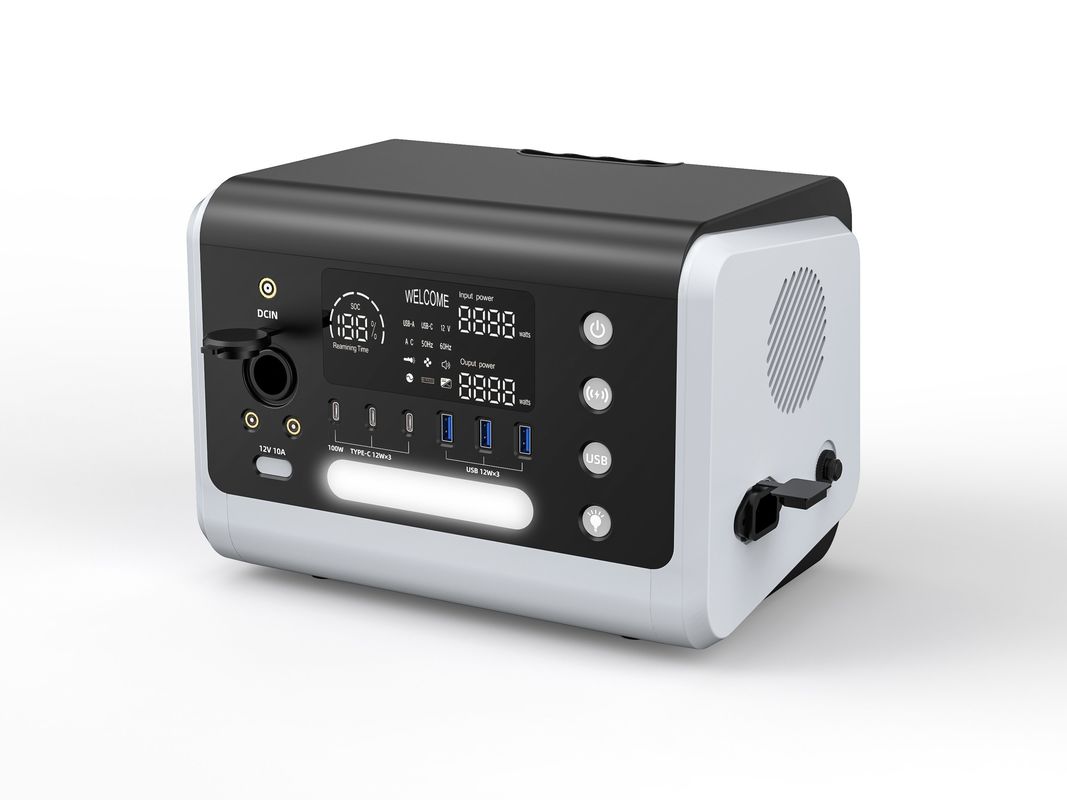

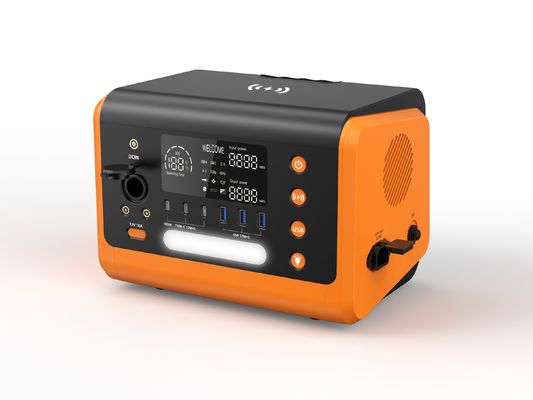

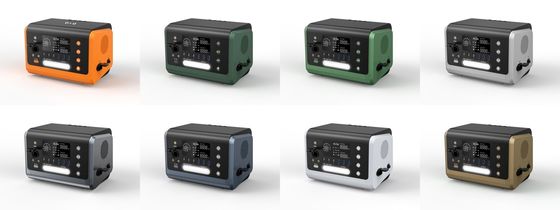

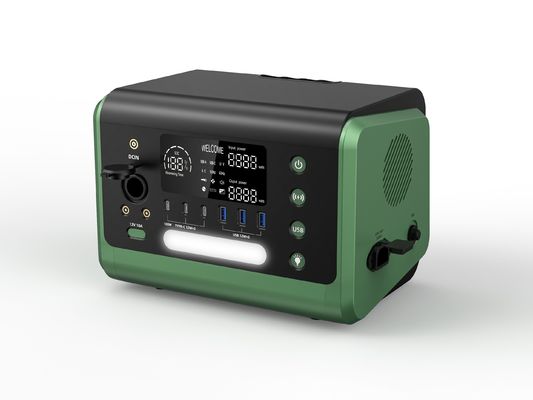

600W Solar System Portable Power Station with Security Protection and Charger
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Qcepow |
| Certification: | CE/FCC/ROHS/UN38.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Routine/negotiation |
| Delivery Time: | Small batch 5 ~ 8 days, large batch negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 3000 units/month |
|
Detail Information |
|||
| Model NO.: | HT06 | USB: | 12W*3 |
|---|---|---|---|
| AC Output: | 110V/230V | Fast Charge: | 1 Hour |
| Charging Mode: | Mains, Car Charging, Solar Charging | LED Lighting: | Low Light, Strong Light, Sos, Flashing |
| Inverter Type: | Pure Sine Wave | Security Protection: | BMS Protection |
| Transport Package: | Un | Specification: | LiFePO4 |
| Origin: | Shenzhen | Supply Ability: | 1000 |
| Nominal Capacity: | 600wh | Size: | 300*205*210* |
| Weight: | 10 | Warranty: | 1year |
| Wireless Charging: | 15W | DC Output: | 12V/10A |
| Samples: | US$ 238/Piece 1 Piece(Min.Order) | Request Sample | Customization: | Available | Customized Request |
Product Description
High quality outdoor mobile generator 600W solar power station portable high power AC output power supply
HT06 power supply has the function of bidirectional charge and discharge in one
High-end portable mobile power or home energy storage
System
High-end portable mobile power or home energy storage
System
Inverter mode:
When there is no mains supply, the inverter converts AC power to supply power to the load
When there is no mains supply, the inverter converts AC power to supply power to the load
| Charging mode:Charging mode: When there is mains power, the battery is charged through the full-bridge inverter unit at the same time; |
| Dc input charging mode:When the DC input port is inserted into the photovoltaic plate, the system starts the MPPT charging mode. This interface is also used as an adapter input interface. |
| Inverter output | Rated output voltage | Rated output power | Rated output frequency | Output voltage fluctuation range |
| 120Vac | 600W | 50/60Hz | ±5% | |
| Mains input | Input voltage range | Rated input power | Rated output frequency | Mains charging power |
| 120Vac | 600W | 50/60Hz | 500W | |
| Photovoltaic input | Operating voltage range | Maximum input current | Maximum output power | |
| 12V~60V | 12A | 240W | ||
| Battery input | Rated input voltage | |||
| 22V |
| item | Minimum value | Typical value | Maximum value | remark |
| Rated input voltage | 17.5VDC | 22.0VDC | 26.0VDC | Suitable for 7 string lithium iron batteries |
| Undervoltage protection | 17.0VDC | 17.5 VDC | 18.0 VDC | Default: 17.5± 0.5V (configurable, minimum 19.5Vdc) |
| Overvoltage protection | 25.0VDC | 25.5VDC | 26.0VDC | Default: 30.0± 0.5V (configurable, maximum 30.0VDC) |
| Rated input current | -- | 30.3A | -- | Vin=22Vdc, Rated load |
| Floating charge voltage | 24.8VDC | 25VDC | 25.2VDC | Default: 25±0.2V (configurable) |
A variety of output ports make you compatible with more devices for outdoor use at home
11 output ports:
| Wireless charging | 1*15W |
| AC Output: | 2*230W |
| DC Output: | 1 |
| USB: | 3*12W |
| TYPE-C: | 1*100W/2*18W |
| 12V/10A: | 2 |
Q: How to ensure quality?
A: Always carry out pre-production samples before mass production; Always carry out final inspection before shipment;
Q: What can you buy from us?
A: You can buy here outside: portable power station, solar panel, car starting battery, new energy car charging gun, low temperature battery,
Q: Can I buy a sample for testing?
A: Yes, we support testing
Q: How about after-sales service?
A:We offer a 1 year warranty, if any problems arise, we will provide a positive solution, please feel free to contact us.
Want to Know more details about this product
