Portable Mobile Power Station 2200W for Car Charging and Solar System 405*275*303mm
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Qcepow |
| Certification: | CE/FCC/ROHS/UN38.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Routine/negotiation |
| Delivery Time: | Small batch 5 ~ 8 days, large batch negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 3000 units/month |
|
Detail Information |
|||
| Model NO.: | AT22 | USB: | 3*12W/2*18W |
|---|---|---|---|
| Type-C: | 3*18W/2*100W | Solar Charging: | 800W |
| Shell Material: | ABS+PC+Aluminum Alloy, Flame Retardant Grade UL94V | AC Output Voltage: | AC:100V-120V/AC:220V-240V |
| Transport Package: | Un | Specification: | LiFePO4 |
| Origin: | Guangdong | Supply Ability: | 1000 |
| Nominal Capacity: | 2048wh | Size: | 405*275*303(mm) |
| Weight: | About 25kg | Warranty: | 1 Year |

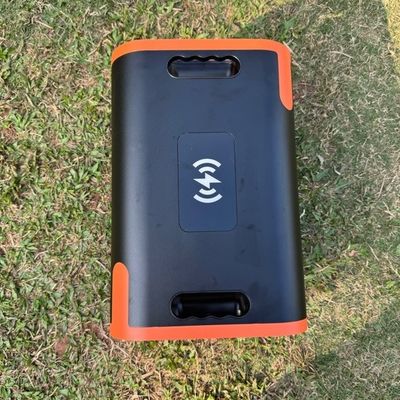

| Wireless Charging: | 15W | Mains: | 1500W |
| Samples: | US$ 965/Piece 1 Piece(Min.Order) | Request Sample | Customization: | Available | Customized Request |
Product Description
Emergency travel Outdoor camping USB charging Car power Portable solar power station energy storage system
| Battery Type | LiFePO4 | 2P16S | ||
| AC output voltage | 220V±5% | |||
| Output Power | 2200W constant power can drive 4000W | |||
| Peak power | 4400W | |||
| Output waveform | AC pure sine wave | |||
| Waveform distortion | <3% linear load, <8% nonlinear load | |||
| frequency | 50±0.5Hz | |||
| DC output | 12V | USB | Type-c | Wireless charging |
| DC output power | 120W | 12W*3/18W*2 | 18W*3/100W*2 | 15W |
| Protective function | Short circuit, overload, overtemperature, overvoltage, overcurrent, undervoltage, low temperature, mains overvoltage, mains undervoltage, photovoltaic overvoltage, output undervoltage, etc. | |||
| AC charging | 1500W(Max) | |||
| Vehicle-mounted, solar charging | 800W(Max) | |||
| battery capacity | 51.52V40AH(3.22V*16S) | |||
| cycle life | 2000 times, remaining capacity 80% (5%-95%DOD) | |||
| physical dimension | 405*275*303(mm) height including foot pads | |||
| weight | About 25Kg | |||
| project | parameter | Remark |
| AC charging | 1500W | 220V |
| Solar panels | 800W | 12~75V dc |
| Wind Turbines | 800W | 12~75V dc |
| hand generator | 800W | 12~75V dc |

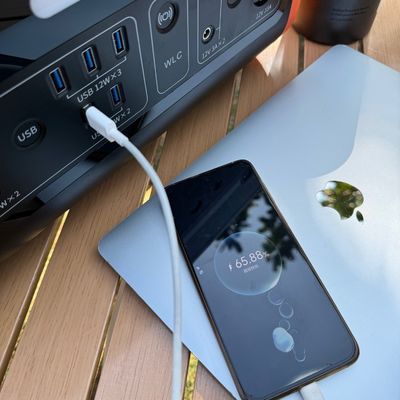

Up to 100W Type-c port, suitable for most Type-c devices.
12V/3A DC 5521 port for use with certain low power devices.
Individual usage scenarios:
| 1.Outdoor application:Lighting, projectors, drones, laptops, barbecue grills, etc. |
| 2.Home application:TV, rice cooker, washing machine, induction cooker, mobile phone charger, etc. |
| 3.Construction site application:Angle grinder, cutting machine, circular saw, electric hammer, electric drill, etc., |
Q: What products can I buy from you?
A: You can buy here outside: portable power supplies, solar panels, car starter batteries, new energy vehicle charging guns, and low-temperature -40° batteries.
Q: What type of batteries do portable power stations use?
A: The portable charging station uses Class A LiFePO4 battery cells.
Q: Can free samples be provided?
A: Yes, the sample cost will be deducted from the bulk order.
Q: How long can a portable power station charge a device?
A: It depends on what device you are using. For example, if it is a portable rice cooker, 2048Wh*0.9*500W=4.3 hours. By analogy, the power of the device can be used to calculate the usage time.
