-40 To -60 Degree Low Temperature Lithium Battery NCA Cathode Material
Product Details:
| Place of Origin: | shenzhen |
| Brand Name: | Qcepow |
| Certification: | MSDS/UN38.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Packaging Details: | Negotiated / Standard Package |
| Delivery Time: | Negotiated / 15Working Days After Payment |
| Payment Terms: | T/T, D/P, MoneyGram |
| Supply Ability: | 5000PCS |
|
Detail Information |
|||
| Model NO.: | 18500-20DBL | Mass: | 34.5±2.0g |
|---|---|---|---|
| (Nominal Voltage: | 3.6 V | Discharge: | -40~60 °c |
| Charge: | 0-45 °c | Transport Package: | Un |
| Specification: | 34.5± 2.0g | Origin: | Shenzhen |
| Supply Ability: | 100000 | Type: | Li-ion Battery |
| Cathode Material: | NCA | Rechargeable: | Yes |
| Size: | Small | Diameter: | 18.30±0.20mm |
| Height: | 48.90±0.30mm | Samples: | US$ 3/Piece 1 Piece(Min.Order) | Request Sample |
| Customization: | Available | Customized Request | ||
| Highlight: | low temperature lithium battery nca cathode,nca cathode low temperature lithium ion battery,18500 low temperature lithium battery |
||
Product Description

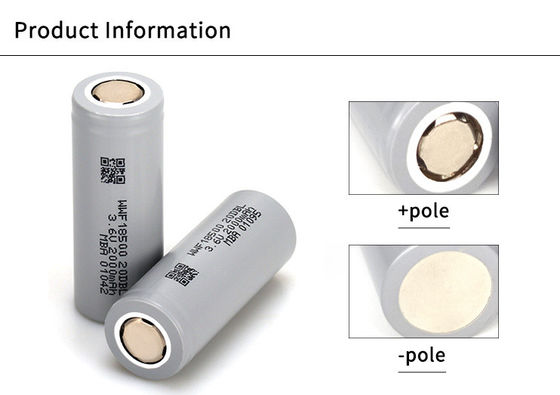

3.6V 2000mAh Lithium Ion Cryogenic Battery -40 to 60 Degree Ultra-Low Temperature
18500-20DBL Low temperature battery
2000mAh large capacity
2000mAh large capacity
|
Type
|
Cylindrical Battery |
| Model number | 18500-20DBL |

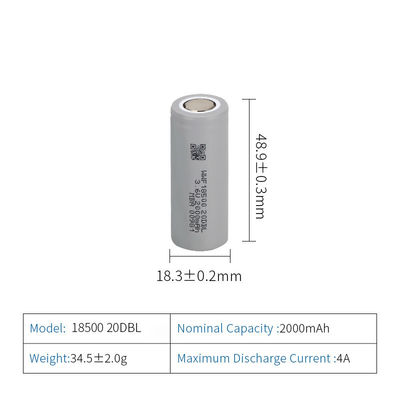

| Size (including heat shrink jacket) | diameter---------------------------------18.30±0.20mm |
| Altitude-----------------------------------48.90±0.30mm | |
| weight |
34.5±2.0g
|
| Nominal voltage |
3.6 V
|
| capacity | Typical value-----------------------------2000mAh |
| Minimum value--------------------------1940mAh | |
| Constant voltage charging voltage |
4.20 ±0.05V
|
| Maximum continuous charging current |
2000mA
|
| Maximum discharge current (continuous) |
4000mA
|
| Discharge termination voltage |
2.5 V
|
| Internal resistance |
≤ 55 mohm
|
| Service temperature | Electric discharge---------------------------40~60 °C |
| charging----------------------------------------0-45 °C | |
| Charge at 0~15ºC---------------------------≤0.2C(400mA) | |
| Charging at 15~45ºC-----------------------≤1.0C(2000mA) | |
Storage temperature |
-20~25ºC
|
environmental friendly
High energy of density
High energy of density
Low internal resistance
Longer Lycle life
zero memory effect
Longer Lycle life
zero memory effect
solar energy/ storage system/ backup power
Electric products/ digital products/toys
Electric products/ digital products/toys
Solar light / flashlight / emergency lighting
Medical Device
Medical Device
1.Q: Can I order a battery sample?
1.Yes, we are welcome to order samples to test and check the quality.
2.Q: What about delivery time?
2.A: Samples take 3-7 days and mass production takes 15-25 days
3.Q: Do you guarantee your products?
3.A: Yes, we offer a 1 year warranty on our products.
Want to Know more details about this product
